Model investigation booklet

Final hand in boards

[P4]: section of central stairway 1:20

[P4]: New Plan drawings

The new plan drawings have been modified do to the comments at the mid critic

Further modified plan drawings:

[P4]: Stairway model 1:20

[P 4]: Stair investigations

[P 4]: seating sketch

[P 4]: connections between bedrooms

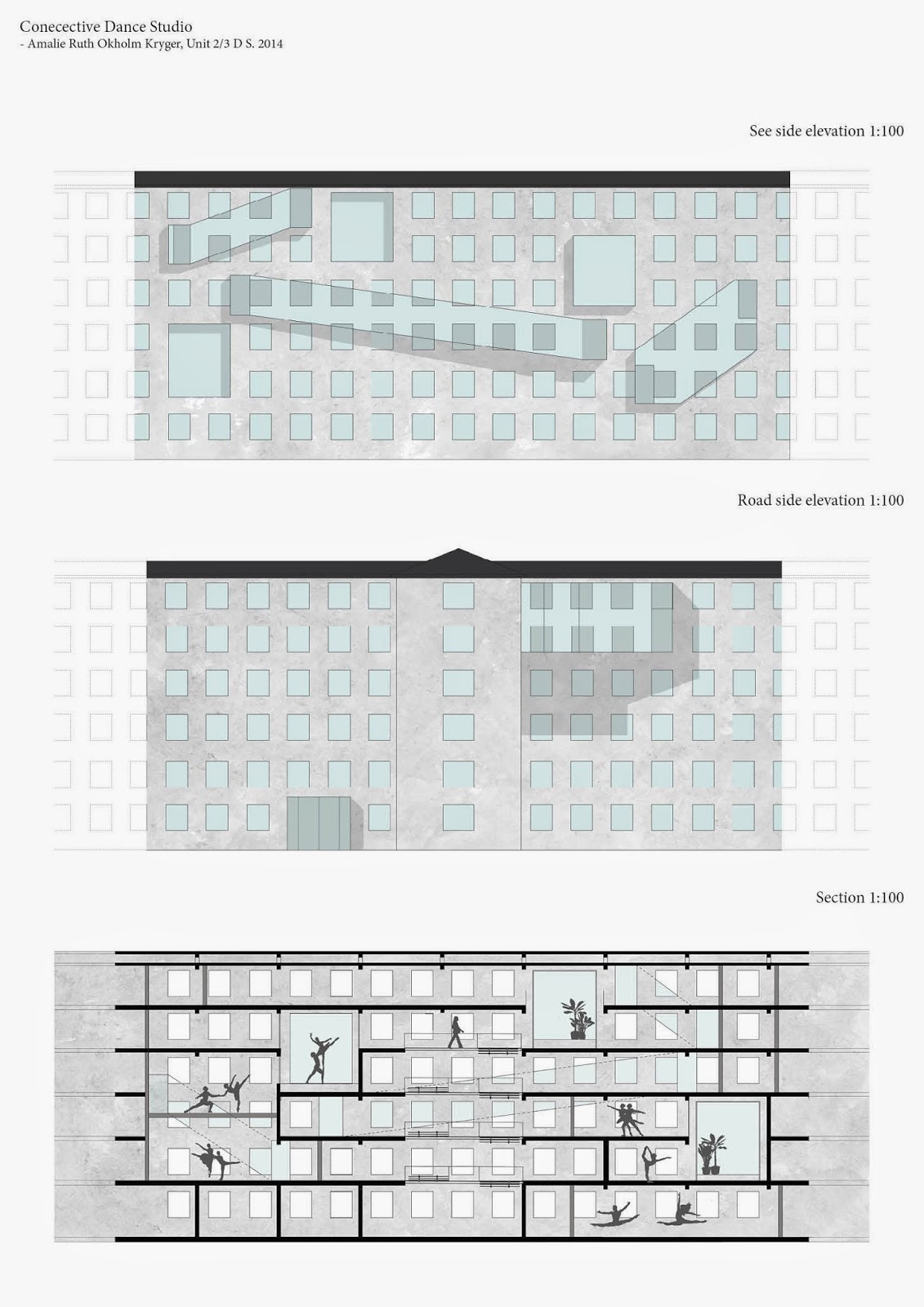

[P4]: Section and elevation

 New elevation and section:

Old elevation and section:

[P4]: Plan 1:10000

[P4]: Plans 1:100

[P4]: sketch

[P4]: Plans 1:200

[P4]: Test of exterior walkways

[P4]: further development of plan drawings

1st. floor

2nd. floor

4th. floor

5th. floor

[P4]: Spacial definition in model

6th and 5th floor 1st draft.

[P4]: sketches and first draft 6th floor

Sketches from logbook of masking in performance space.

First draft of spacial conditions of 6th floor.

[P4]: Back stage stairs

Translucent screen creates a semi-visible connection with the vertical movement of the back stage.

Section with the stairs.

[P4]: Skin Model progress

[P4]: Material inspiration

Inspiration: mirrors with small whit dotes to create a foggy feel in the dance studio, this brings in a feel of nature and also incorporates a weather phenomenon form last semester.

this material could be used in the dance studios and also just as window material with transparent glass to create a transparent but still intimate feeling.

Parker, Kate(2011) ANZAS Dance Studio <http://www.dezeen.com/2011/04/12/anzas-dance-studio-by-tsutsumi-and-associates/> [accessed: 06-03-2014]

[P3]: Axonomatric program

Fist draft of axonometric drawing

Axonometric with 1st draft program

1st. Axonometric with icons and defining programs

2nd. Axonometric with icons and defining programs + climatic temperature

Axonometric program with interior climate conditions and connections through vertical movement

[P3] Mapping of connections

[P3]: Test with exterior stairs or walkway

With exterior walkway

Without exterior walkway
